Introducing the

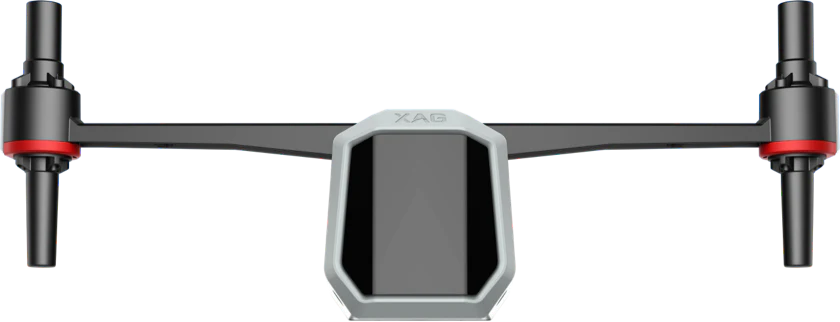

XAG APC1 Auto Pilot Console

Navigate with Precision

Autonomous, precise operation | Cost-effective performance | Easy to operate

XAG AutoPilot Console empowers small-to-large agricultural equipment with capability to conduct high-precision farming operations. An automated steering system with access to signals from RTK Base Station, simply connected to mobile app and primed by easy tabs. From tillage, seeding, crop management to harvest, APC1 can ease you from long hours of concentration.

Autonomous, precise operation
RTK navigation technology enables agricultural vehicles to operate automatically in 2.5 cm accuracy.

Cost-effective Performance
Auto driving on designated straight path that avoids skip and overlap to save time and reduce cost

Easy to Operate
Select target area and pre-program route on mobile app to enable hands-free operation with ease

One System for Multiple Machines, Never been Easier

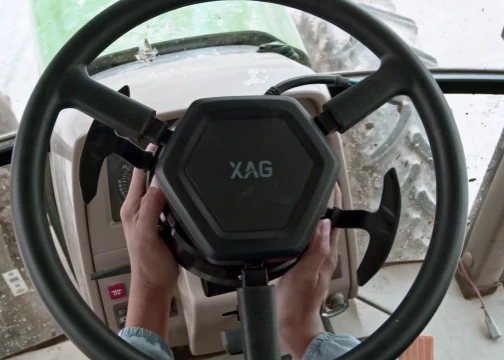

XAG AutoPilot Console can be flexibly transferred between various types of agricultural machinery. Quick assemble within 20 minutes that turns your tractor, sprayer or rice transplanter into a smart, automated machine.

Want to know more about The XAG APC1 AutoPilot Console?

Click the "More Info" tab above

More Info

Specifications

XAG APC1 AutoPilot Console Specs

Console

Steering Control

Automatic

On-Board Processor Model

MT6873

On-Board Computer RAM

6 GB

On-Board Computer Hard Drive

64 GB

On-Board Computer OS and Software Version

Android 7.0

On-Board Computer Display Size and Resolution

6.5 inches, 2400x1080

On-Board Computer Port

Type-C

On-Board Computer Data I/O Protocol

Wi-Fi protocol

Satellite Receiver Type and Bands

Multi-band navigational receiver,

BDS B1/B2 GPS L1/L2 GLONASS L1/L2 Galileo E1/E5b*

Satellite Receiver Mainboard Firmware Version

R2.00Build20095

Satellite Receiver Channels

432 channels

Satellite Receiver Port

UART

Satellite Receiver Differential System

RTCMV2, RTCMV3

Satellite Receiver Update Rate

5 Hz

Satellite Receiver Antenna

Helix antenna

Steering Controller Mainboard Firmware Version

1.0.0.8

Hydraulic Valve/Motor Model

SW-ED10

Fixed Base Station Signal Coverage

30 km

Radio Transmitter Frequency

2400 MHz

Power of Fixed Base Station Radio Transmitter

6 W

Integration Components

Satellite antennas, receiver & radio station;

electric steering wheel & controller

Dimensions

220*616*267 mm

Positioning Accuracy

Horizontal: 1 cm+1 ppm

Vertical: 1.5 cm+1 ppm

Operating Accuracy

±2.5 cm

Power Input

DC12 V ~ 24 V

Satellite System

Beidou/GPS/GLONASS

Communications Protocol

Wi-Fi, Cloud connection

Wi-Fi Frequency

2.4/5.8 GHz

Break-Point Endurance

10 min

Operating Temperature

-20℃ ~50℃

Storage Temperature

-40℃ ~70℃

Radio Transmit Power of AutoPilot Console

3 W

Operating Speed Range of Agricultural Machinery

0.3 km/h~13 km/h

Motor

Dimensions

220*210*87 mm

Steering Wheel Diameter

410 mm

Rated Voltage

12 V

Maximum Voltage

28 V

Isolation Voltage

500 VDC

Torque

Rated: 10 NM

Maximum: 20 NM
